$open case-study/01

project 01ai · multi-tenant saas

AI Customer Service Platform

A multi-tenant support platform where several businesses share one deployment: a unified conversation inbox across WhatsApp and Telegram, an AI assistant grounded in each tenant's own knowledge base, and an admin surface for the teams running it.

role

Frontend architecture & lead implementation

type

Multi-tenant SaaS platform

stack

Angular · NgRx · Rust · Axum · PostgreSQL · pgvector

timeframe

2025 — ongoing

github ↗Live demo — not public (multi-tenant data)

Product Context

context.md

what it is

A customer-service workspace that collects messages from WhatsApp and Telegram into one inbox, with an AI assistant that drafts replies from the tenant's knowledge base.

who it serves

Support agents handling day-to-day conversations, and the admins who configure channels, articles and team access for each tenant.

why it matters

Customers already message businesses on chat apps. Consolidating those threads and grounding answers in real documentation is what makes small teams able to keep up.

The Challenge

04 constraints

01Tenant isolation the UI can be trusted onEvery request, cache entry and socket subscription has to be scoped to the active tenant. A single stale cache key is a data-leak bug, not a rendering bug.
02Live conversation stateMessages arrive from external channels at any moment while an agent is typing, filtering or switching threads. Optimistic updates must reconcile with server order.
03Grounding AI answersA generic model answer is worse than none. Replies need retrieval over the tenant's own content and a visible trail back to the source passage.
04Channel differencesWhatsApp and Telegram differ in message types, delivery semantics and attachment handling. The UI needs one mental model without lying about what a channel supports.

My Role

Frontend architecture, end to end.

I owned the Angular application and worked down the stack into the Rust API where the frontend's data shape demanded it.

Frontend architecture

Feature boundaries, tenant-scoped store design, routing and the shared component layer.

AI product surface

The assistant panel: suggestion states, streaming output, source citations and failure handling.

API contract

Defined the response shapes with the backend and implemented parts of the Axum service and its queries.

Quality bar

Accessibility for the inbox keyboard flow, render performance on long threads, and the testing strategy.

Architecture

06 layers

L1 · presentation

User interface

Inbox, conversation view, knowledge base, admin.

AngularTailwind

L2 · components

Component & design-system layer

Presentational components with typed inputs, OnPush change detection.

StandaloneOnPush

L3 · state

State management

Tenant-scoped feature stores; signals for local UI state.

NgRxSignals

L4 · transport

API layer

Typed HTTP clients plus a socket channel for live messages.

HTTPWebSocket

L5 · services

Backend services

Tenant resolution, channel webhooks, retrieval and completion.

RustAxum

L6 · data

Data & AI

Relational data with row-level tenant scoping; embeddings alongside it.

PostgreSQLpgvectorLLM

Technical Decisions

04 records

Each decision below records what it cost as well as what it bought.

decision 01

problem

Tenant context leaking between sessions in a shared client cache.

decision

Tenant identity is part of the store shape, and switching tenant destroys and re-creates feature state rather than merging it.

reason

Isolation becomes structural instead of a rule every developer has to remember on every new selector.

trade-off

A full refetch on tenant switch, and no cross-tenant views without deliberate new work.

decision 02

problem

Webhook ingest plus embedding work on the same request path as agent traffic.

decision

Rust with Axum for the API layer instead of extending an existing Node service.

reason

Predictable latency and memory under concurrent channel webhooks, with strong compile-time guarantees on tenant-scoped queries.

trade-off

A smaller pool of contributors and slower iteration on early, still-changing endpoints.

decision 03

problem

Retrieval needs vector search, but the product already depends on relational data.

decision

pgvector inside the same PostgreSQL instance rather than a dedicated vector database.

reason

Embeddings stay joinable to tenant and document rows, so one transaction and one backup story covers everything.

trade-off

Index tuning is bound to Postgres, and very large corpora would eventually need a separate service.

decision 04

problem

Two kinds of state — server truth and transient UI — were tangled in one store.

decision

NgRx for conversation and channel data; signals for local UI state such as panels, drafts and filters.

reason

Server state gets traceable, debuggable transitions; ephemeral UI state stays where it is used with far less ceremony.

trade-off

Two state idioms in one codebase, which needs a written convention to stay legible to new engineers.

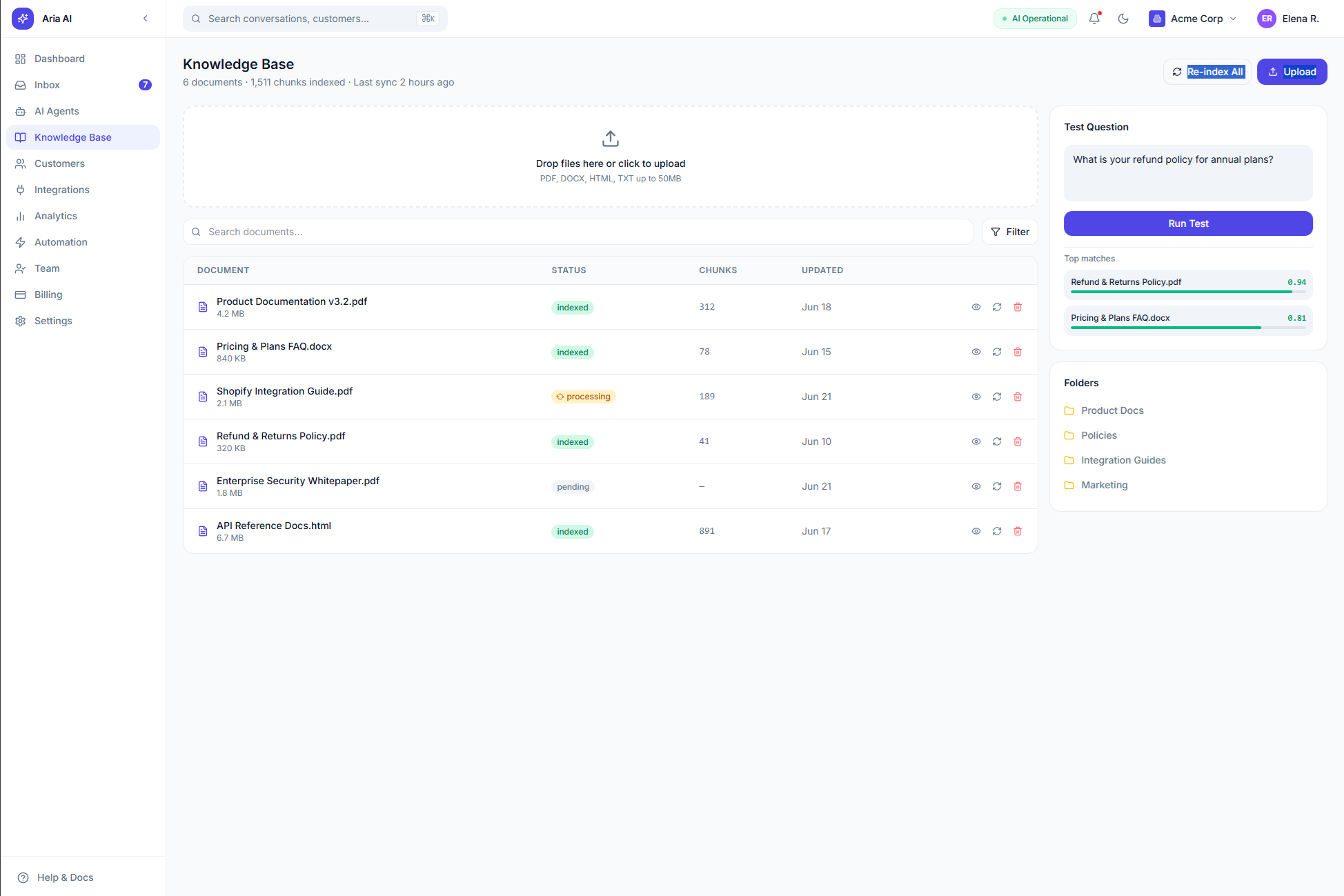

Knowledge Base

Answers are only as good as the source.

Each tenant curates its own articles. Documents are chunked and embedded on ingest, and every assistant reply surfaces the passages it drew from, so an agent can verify before sending.

Admin & Tenants

Switching tenant is a hard reset, by design.

Changing tenant tears down feature state and re-subscribes rather than merging caches. It costs a refetch and removes an entire class of cross-tenant bug.

Engineering Quality

08 dimensions

Accessibility

Keyboard navigation across inbox, thread and composer; live regions announce new messages; visible focus throughout.

Performance

Virtualised message lists, OnPush components, and lazily loaded feature routes.

Testing

Unit tests on reducers and selectors, component contract tests, Playwright on the send-and-reply path.

Error handling

Typed failure states for send, retrieval and model timeouts, each with a recovery action rather than a toast.

State management

One direction of data flow; derived data via selectors; no component reaching into another's state.

Component architecture

Standalone components split into container and presentational roles with typed inputs and outputs.

Responsive design

Three-pane desktop layout collapses to a stacked, one-view-at-a-time flow on small screens.

Maintainability

Feature-sliced folders, shared design-system primitives, and lint rules that block cross-feature imports.

Outcome

● in active development

Where it stands.

resultsA working multi-tenant platform: agents answer WhatsApp and Telegram conversations from one inbox, with assistant drafts grounded in tenant documentation.

technicalTenant isolation enforced by store structure and row-level scoping; retrieval served from the same database as the relational data.

lessonsSplitting server state from UI state early prevented most of the bugs I expected from live channels. Retrieval quality depended far more on chunking and source curation than on model choice.

statusIn active development. Next up: per-tenant analytics, more channels, and a reply-suggestion evaluation loop.
